Features:

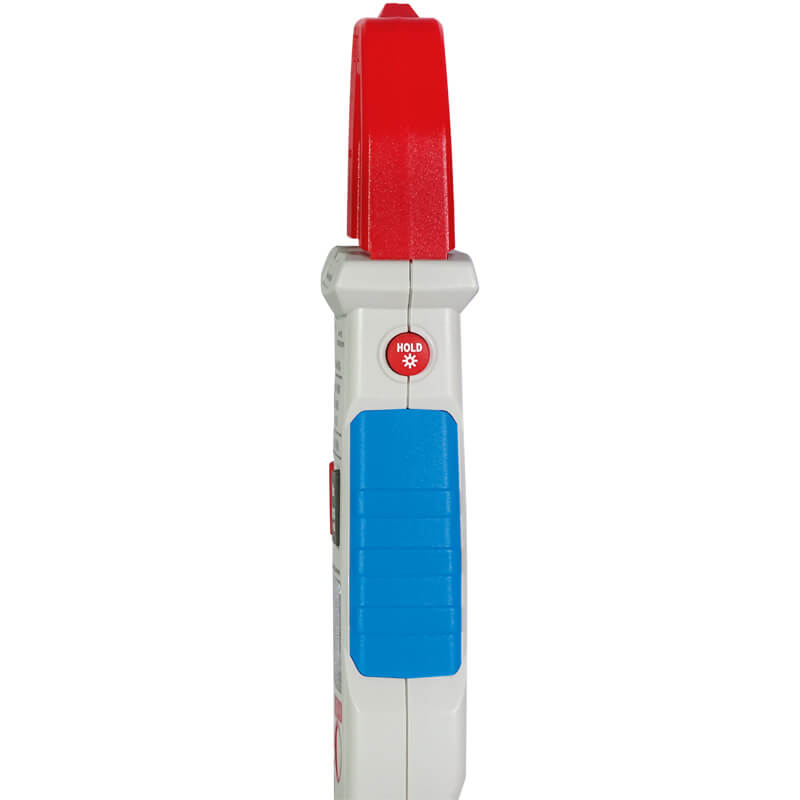

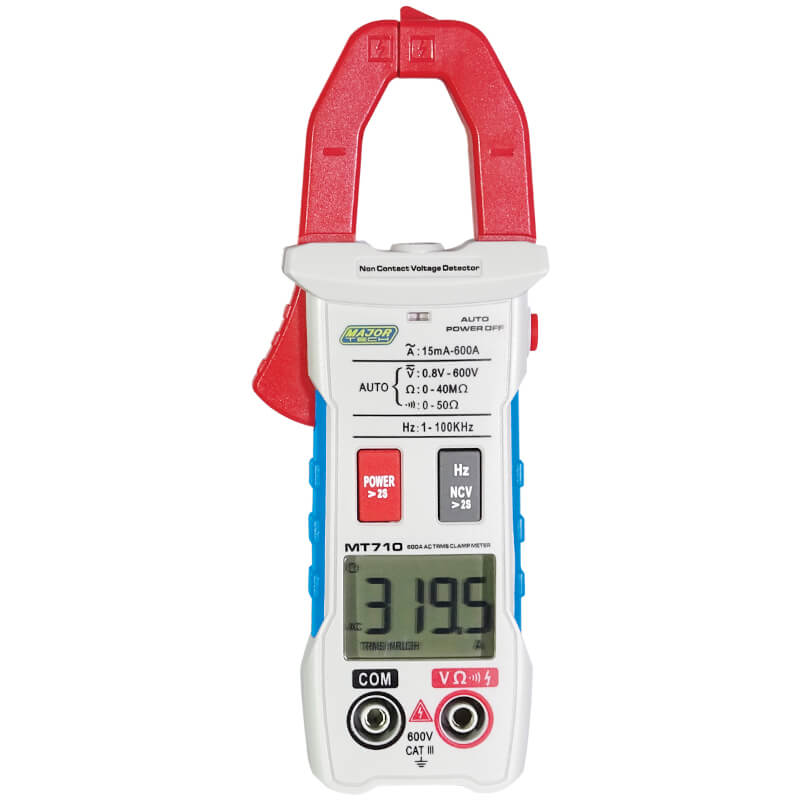

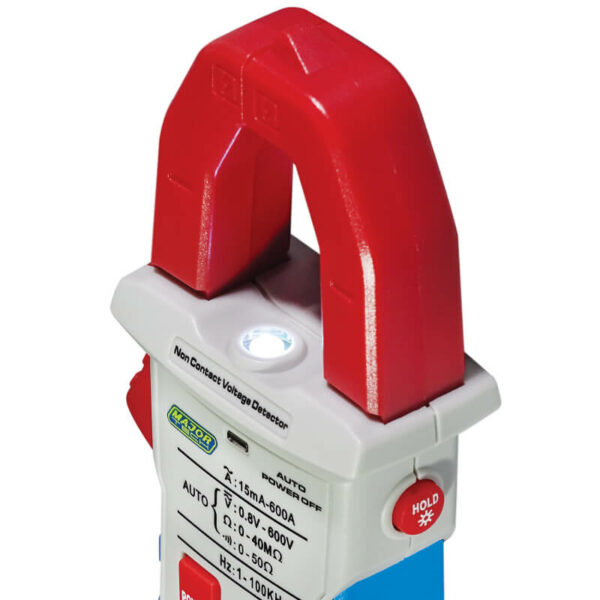

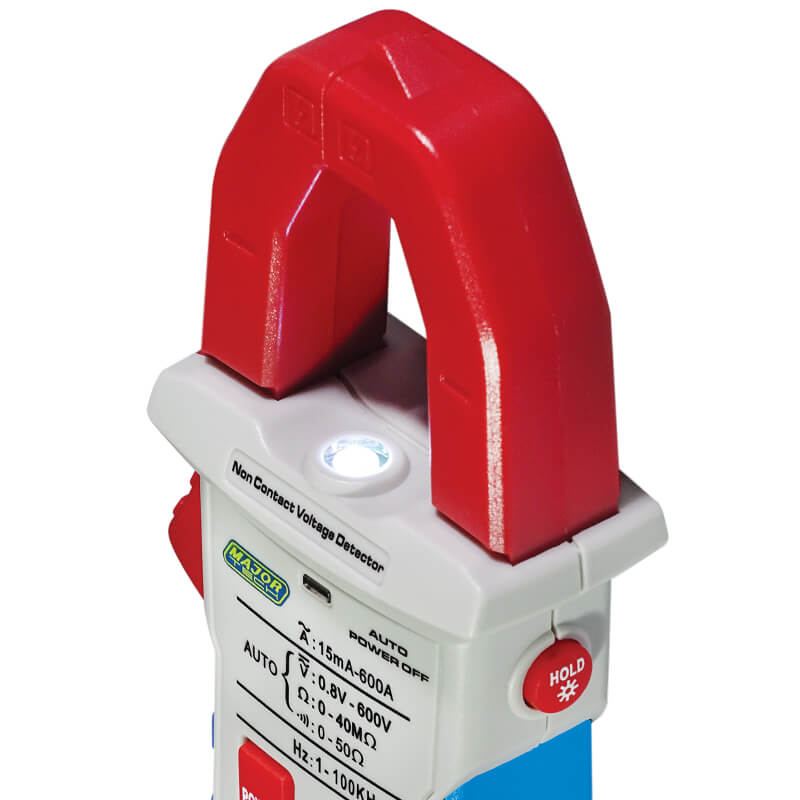

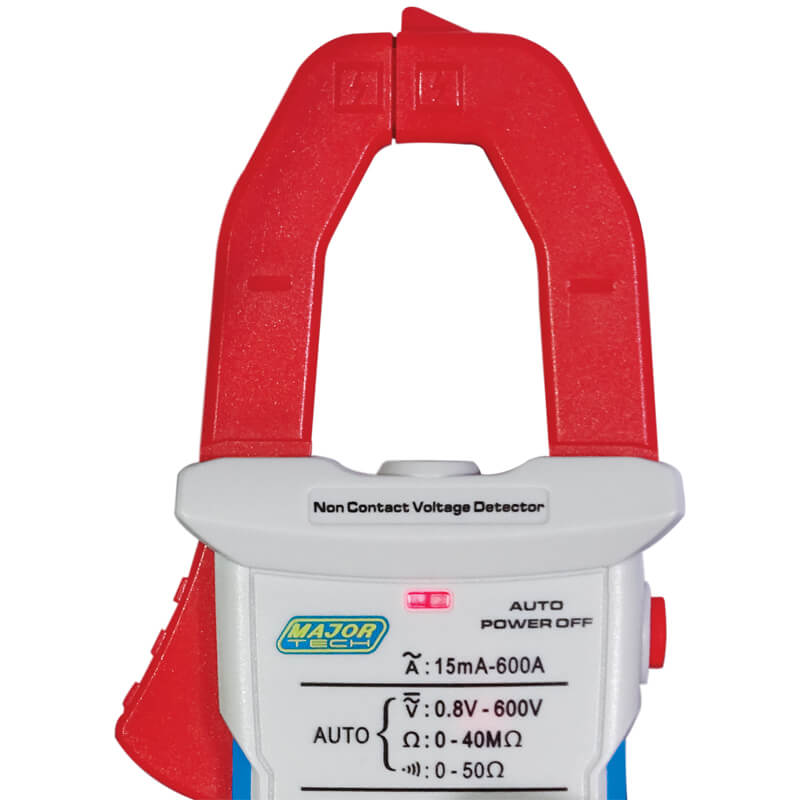

The MT710 is a 600A AC TRMS Clamp Meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The Smart mode, “AUTO”, is a function that automatically identifies DC voltage, AC voltage, resistance and continuity and automatically displays the measurements. By pressing the NCV button continuously the LCD displays “EF” and will display “—-“ when voltage is detected and the buzzer sounds. The meter measures 600V AC/DC, frequency, resistance measurements, plus Inrush current and Peak Voltage value. Other features include, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern compact housing ideal for electricians, HVAC technicians and students studying electrical.
| AC Current | 4.000A – 600A |
|---|---|
| AC Current Resolution | 4mA |
| AC Current Accuracy | ±(2.5% + 8 Digits) |
| DC Voltage | 4.000V – 600V |
| DC Voltage Resolution | 1mV |
| DC Voltage Accuracy | ±(0.5% + 3 Digits) |
| AC Voltage | 4.000V – 1000V |
| AC Voltage Resolution | 1mV |
| AC Voltage Accuracy | ±(1% + 5 Digits) |
| Resistance | 4.000kΩ – 40.00MΩ |
| Resistance Resolution | 0.001kΩ |
| Resistance Accuracy | ±(0.5% + 3 Digits) |
| Frequency | 4.000Hz – 100.0kHz |
| Frequency Resolution | 0.001Hz |
| Frequency Accuracy | ±(0.1% + 2 Digits) |
| True RMS Measurements | ACV, ACA |
| AC Bandwidth | 40Hz-1kHz |
| Digital Display | 4000 |
| Non-Contact Voltage (NCV) | Yes |
| Overrange Indication | Yes |
| Continuity | Yes |
| Jaw Size | 25mm |
| Peak Hold | Yes |
| Back Light | Yes |
| Enclosure | ABS Moulding |
| Low Battery Indication | Yes |
| Batteries | 2 x AAA |
| Weight | 172g |
| Dimensions | 172 x 64 x 32mm |
| Safety Specs | IEC61010-1 CAT IV 300V |
