Freedom Won ETower e5000 Inc Acc 5kw 52v

Product Code: SOL-70102 Categories , Brand:

Available for Quotation

Out of stock

Out of stock

Select a branch for in-store stock availabilitySelect Branch

Out of stock

Out of stock

Select a branch for in-store stock availabilitySelect Branch

Add to Quote
Add to List

Select a wishlist

Get this with easy monthly payments through Mobicred

This item is limited to {{stock}}

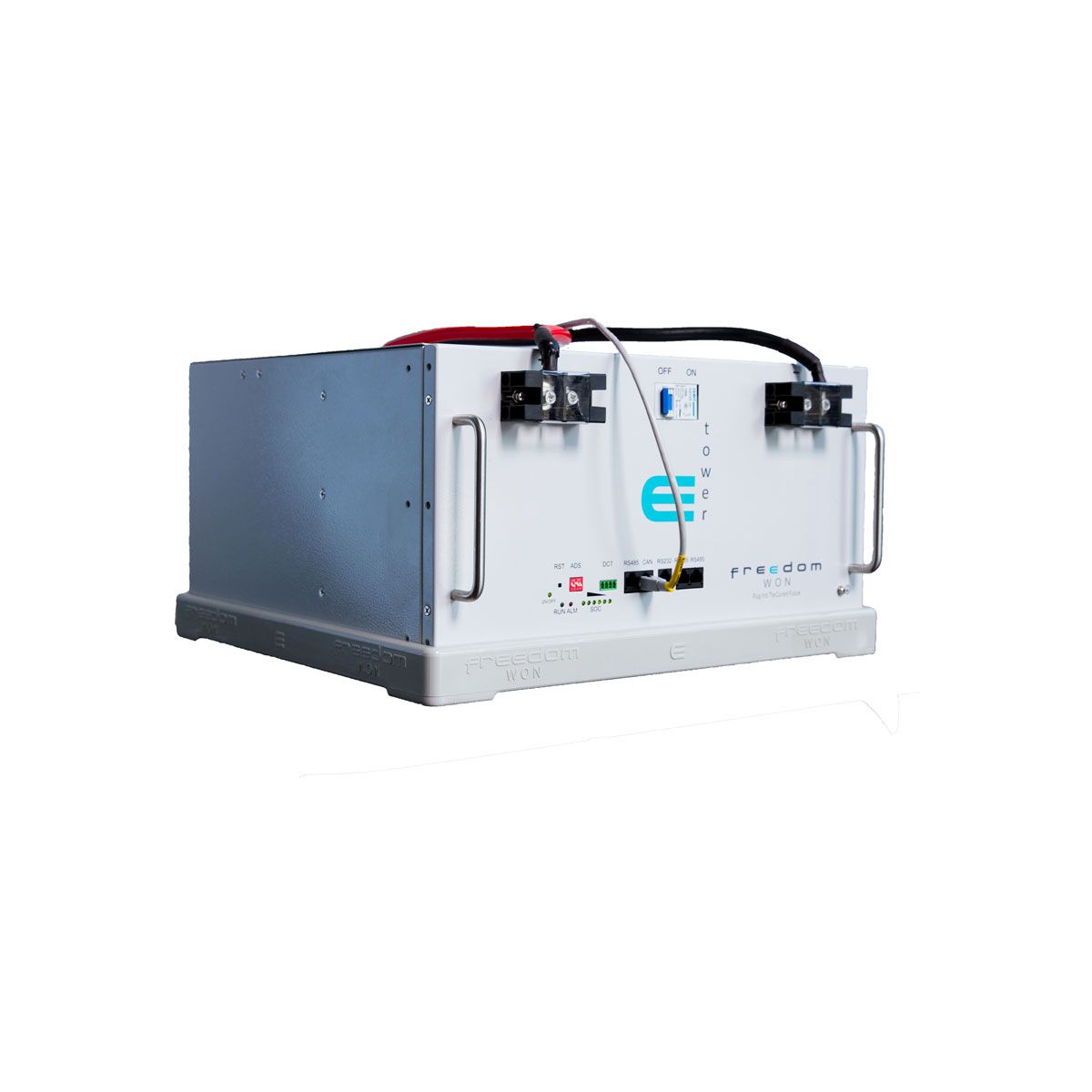

Modular LiFePO4 energy storage from your trusted high performance battery partner – the Freedom Won eTower modular stackable battery is designed for smaller 52V solar integrated and backup applications (general UPS, residential, telecoms, server rooms etc).



The e5000 modules are stacked in a neat and convenient tower with the help of a plastic frame placed below each module, with options of 1,2,3, or 4 modules per system.



  • 5kWh battery with a 90% DoD
  • Stackable up to 4 Units (20kWh Total)
  • Wide range Inverter compatibility
  • 10-Year Limited warranty
  • Module interface pedestal included (no cabinet required)
  • 5U module design
  • 4000 charge and discharge cycles
  • Stacked horizontally onto each other to form a tower with pedestals included, (one per module) or 19 inch rack mounted with brackets (cabinet excluded).
  • Vertical mounting on floor or wall (shelf/bracket) with terminals facing upwards
  • Comes complete with One e5000 plastic pedestal for tower stacking (cleats for 19” rack not included but available from Freedom Won if required).



All Acccessories Included:
1 x 1.8m red 35mm battery cable with m6 lug
1 x 1.8m black 35mm battery cable with m6 lug
2 x busbar connectors (x1 heatshrink in black and x1 heatshrink in red)
1 x inter modular comms cable
1 x 1.8m long comms cable for Victron Inverters
1 x 1.8m long comms cable for Type 1 inverters
1 x 1.8m long RS485 comms cable this is for Voltronic inverters (Kodak) communication



Datasheet

The Freedom Won eTower LiFePO4 Battery 5kW 52V is an economical and modular LifePO4 solution for residential and light commercial applications.



Preferred Installer pricing provided, contact us directly for assistance.

Additional information

Weight 45 kg
Dimensions 240 × 440 mm
Battery type

Nominal Energy

Brand

Dod

Battery Voltage

SKU

Continuous discharge rate (normal use)

4700W

Max . Discharge ( 5 min)

5200W

Surge discharge (15 sec)

5200W

Max. Charge rate (5min)

4200W
