Available for Quotation
Out of stock
Out of stock

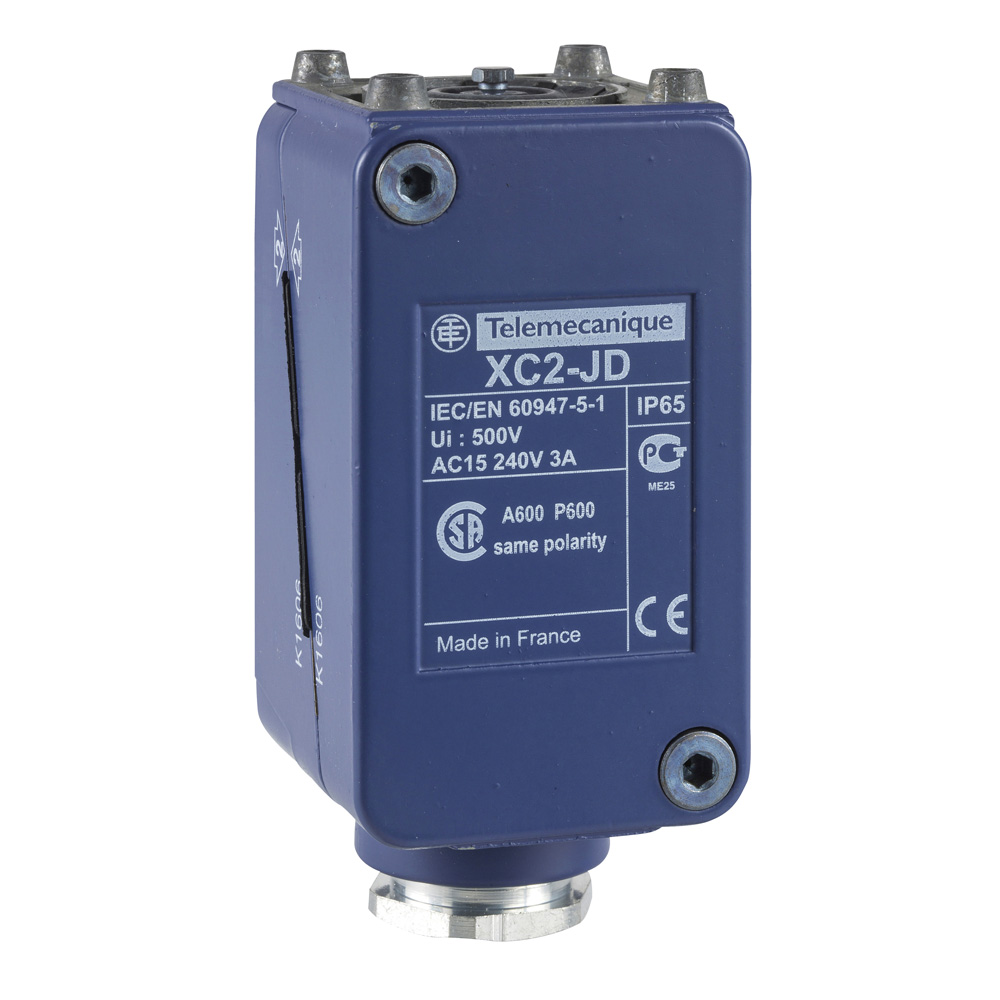

This product is part of the XC Special range an offer of limit switches. This limit switch plug-in body is a device that converts a mechanical motion into an electrical control signal. It has 2 change over snap action contacts without positive opening operation. It has 2 poles with silver plated contacts. It is furnished with screw clamp terminals for electrical connection and 1 tapped entry for PG13.5 cable gland (included). It is an IP65 and IK08 rated product. This switch has a rated operational current of 3A at 240V AC 0.27A at 250V AC and a conventional enclosed thermal current of 10A. It offers long electrical life with electrical durability of about 5 million operating cycles. The limit switch body is made of metal. Its dimensions are 42mm (Width) x 41mm (Depth) x 81mm (Height) and weighs 0.38kg. It is compatible with XC2J series limit switches. Its associated heads are ZC2JE05 ZC2JE01 ZC2JE61 ZC2JE02 ZC2JE62 ZC2JE09 ZC2JE63 ZC2JE64 ZC2JE66 ZC2JE03 ZC2JE70 and ZC2JE65. Special format limit switches for severe environments.
Limit switch body Limit switches XC Standard ZC2J plug in without display 2C/O
| Weight | 0.393 kg |
|---|---|
| Dimensions | 9.5 × 4.8 × 4.8 mm |
| Product group | |
| Brand | |
| GTIN_EAN_13 code | |
| GTIN_EAN_14 code |
No downloads available for this product.
