R1,256.58
In stock
In stock

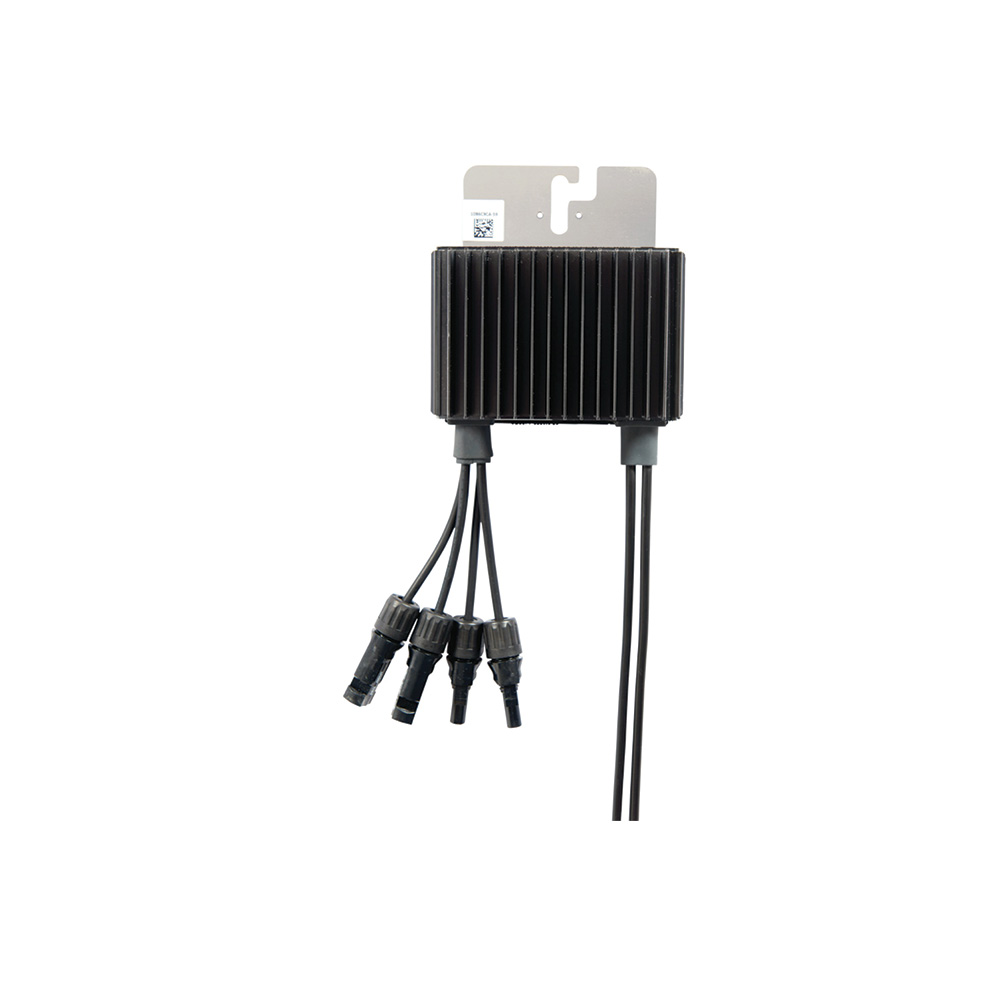

Optimizer Duo 850w MC4 120v 1.2m – Datasheet
The SolarEdge power optimizer is a DC/DC converter which is connected by installers to each solar module, turning them into smart modules. The SolarEdge power optimizers increase energy output from PV systems by constantly tracking the maximum power point (MPPT) of each module individually. Furthermore, the power optimizers monitor the performance of each module and communicate performance data to the SolarEdge monitoring platform for enhanced, cost-effective module-level maintenance. Each power optimizer is equipped with the unique SafeDC™ feature, which is designed to automatically reduce modules’ DC voltage to a safe level whenever the inverter or grid power is shut down (unless connected to a StorEdge inverter operating in backup mode).
| Weight | 0.1 kg |
|---|---|
| Dimensions | 162 × 129 × 59 mm |
| Rated Input DC power | 850W |
| MPPT voltage range | 12.5-105Vdc |
| Maximum Short Current per Input | 12.5Adc |
| Maximum Ouput Current | 18Adc |
| Maximum Output Voltage | 85Vdc |
| Output connector | MC4 |
| Supplier SKU | P850-4RM4MBM |
No downloads available for this product.
