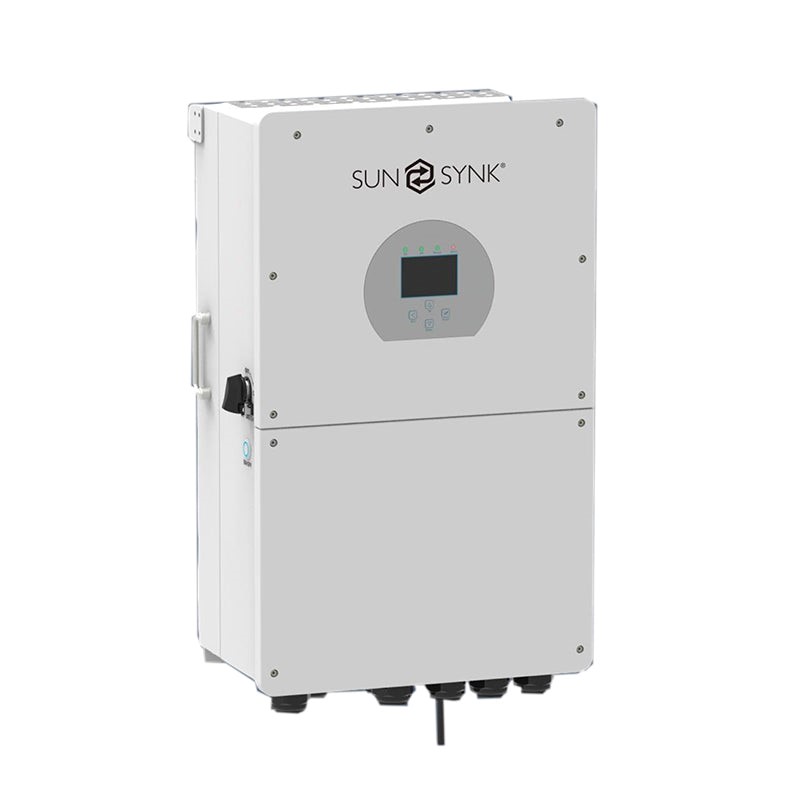

Sunsynk 16kW 1Phase Hybrid PV Inverter 48v

Sunsynk 16kW 1Phase Hybrid PV Inverter 48v

Product Code: SOL-10363 Categories ,

R83,160.31

In stock

In Stock

Select a branch for in-store stock availabilitySelect Branch

In stock

In Stock

Select a branch for in-store stock availabilitySelect Branch

Add to Quote
Add to List

Select a wishlist

Choose a wishlist or Create a new list

Add to my list

Get this with easy monthly payments through Mobicred

Find Out More
  • Fast, Secure Delivery available (Standard Delivery: 2 - 3 working days | Next working day)
  • Standard 1 Year warranty available. Learn more
  • 7-day returns with the option of a refund, or replacement, available online or at your nearest ARB store. Learn more

This item is limited to {{stock}}

  • The largest single-phase hybrid Inverter on the market.
  • Maximum of 15 units can be paralleled for a maximum power output of 240kW
  • 3 x inverters can be connected in a single-phase configuration giving a total power of 48kW.
  • 3 Inbuilt MPPT’s
  • Programmable multiple operation modes: on-grid/off-grid & UPS.
  • IP65 protection rating – suitable for most outdoor installations.
  • Wi-Fi dongle as standard – enabling remote monitoring via the Sunsynk cloud
  • Compatible with leading lithium battery brands such as Hubble Lithium, Pylontech LV, Freedomwon and Kodak



Sunsynk 16kW 1Phase Hybrid PV Inverter 48v – Datasheet

The Sunsynk MAX is a low voltage (48V) hybrid inverter suitable for off-grid, grid support, back-up and self-consumption PV systems. Moreover, the inverter can also be used in both three-phase and single phase parallel applications. Preferred Installer pricing provided, contact us directly for assistance.

Additional information

Weight 34.5 kg
Dimensions 422 × 702 mm
MPPT range

150V – 450V
Max PV power

18000W
Max AC power (5 min)

16500W
Surge AC power (1 sec)

24000W
Max DC inputs

6
MPPT Qty

3
Parallel function

Yes

No downloads available for this product.
