Available for Quotation
Out of stock
Out of stock

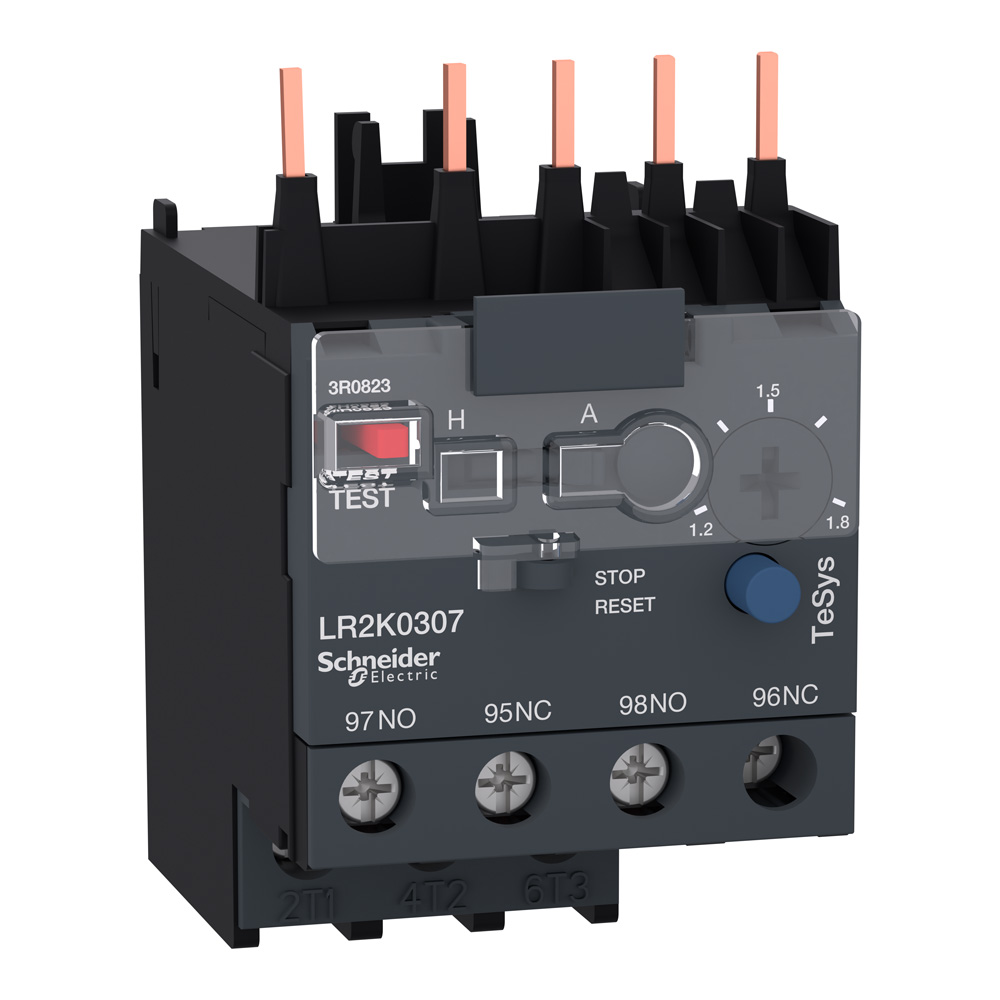

TeSys LRK thermal overload relay 1.8A/690V thermal setting range 1.2-1.8A tripping class 10A for protection of 3-phase motors 0.55kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial a manual-automatic reset selector a test slide switch for simulation of a tripping reset/stop button a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals it connects directly to the bottom terminals of 3-pole contactors LC1K06-K16. Mounting on DIN rail separated from the contactor with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC UL CSA CCC EAC) Green Premium compliant (RoHs/Reach).
TeSys K – differential thermal overload relays – 1.2…1.8 A – class 10A
| Weight | 0.157 kg |
|---|---|
| Dimensions | 8.2 × 7.1 × 4.9 mm |
| Product group | |
| Brand | |
| GTIN_EAN_13 code | |
| GTIN_EAN_14 code |
No downloads available for this product.
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
