R2,596.96
In stock
In stock

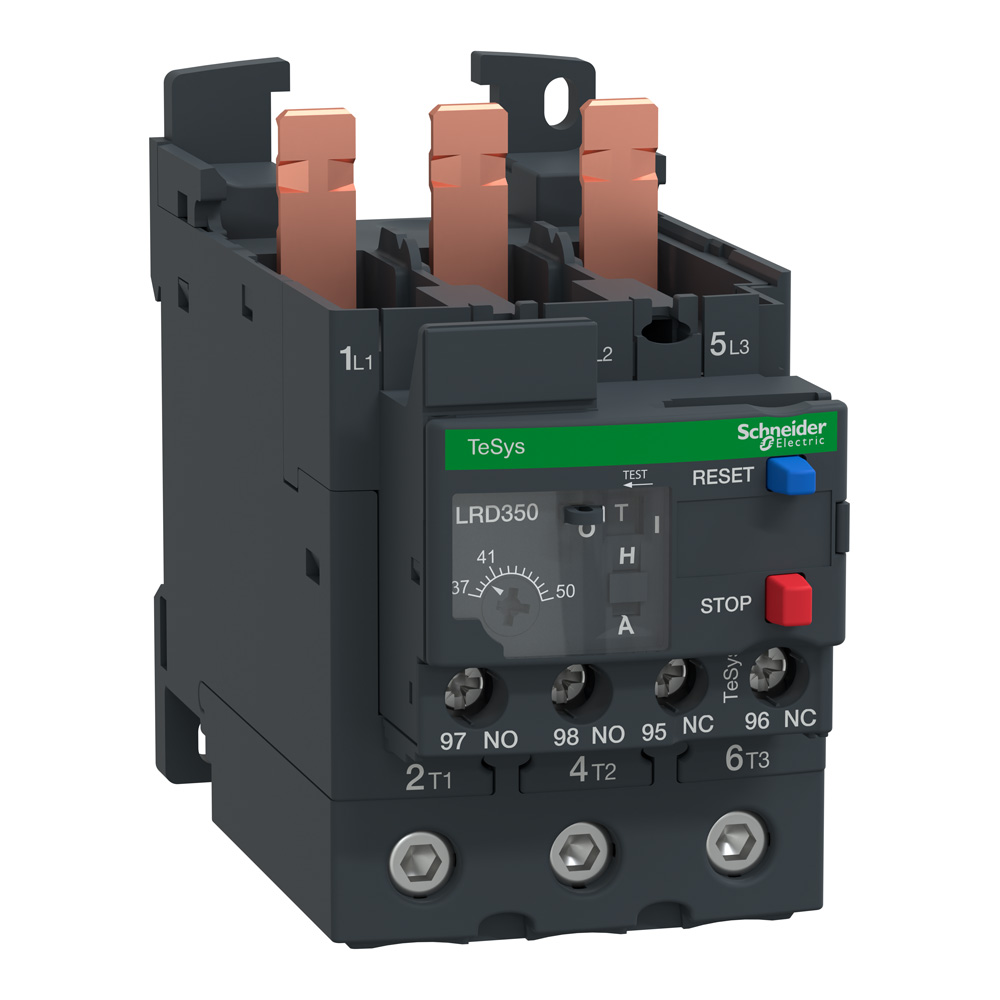

TeSys LRD thermal overload relay 50A/690V thermal setting range 37-50A tripping class 10A for protection of 3-phase motors 22kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial a manual-automatic reset selector a test selector for simulation of a tripping reset and stop buttons a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing separated from the contactor with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC UL CSA CCC EAC Marine) Green Premium compliant (RoHs/Reach).
TeSys LRD thermal overload relays – 37…50 A – class 10A
| Weight | 402 kg |
|---|---|
| Dimensions | 13.6 × 10.4 × 6.4 mm |
| Product group | |
| Brand | |
| GTIN_EAN_13 code | |
| GTIN_EAN_14 code |
No downloads available for this product.
