Features :

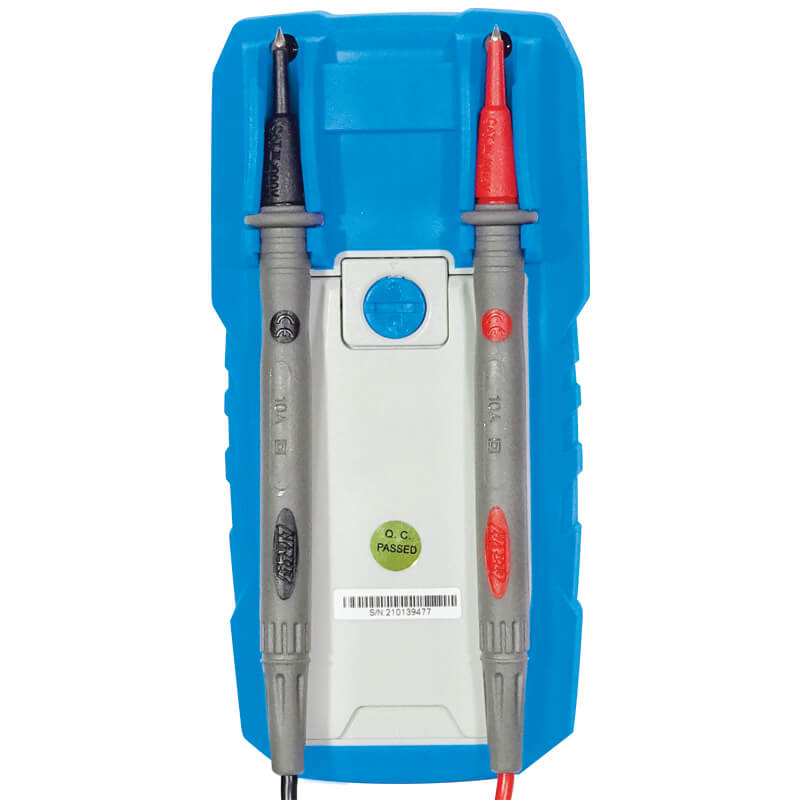

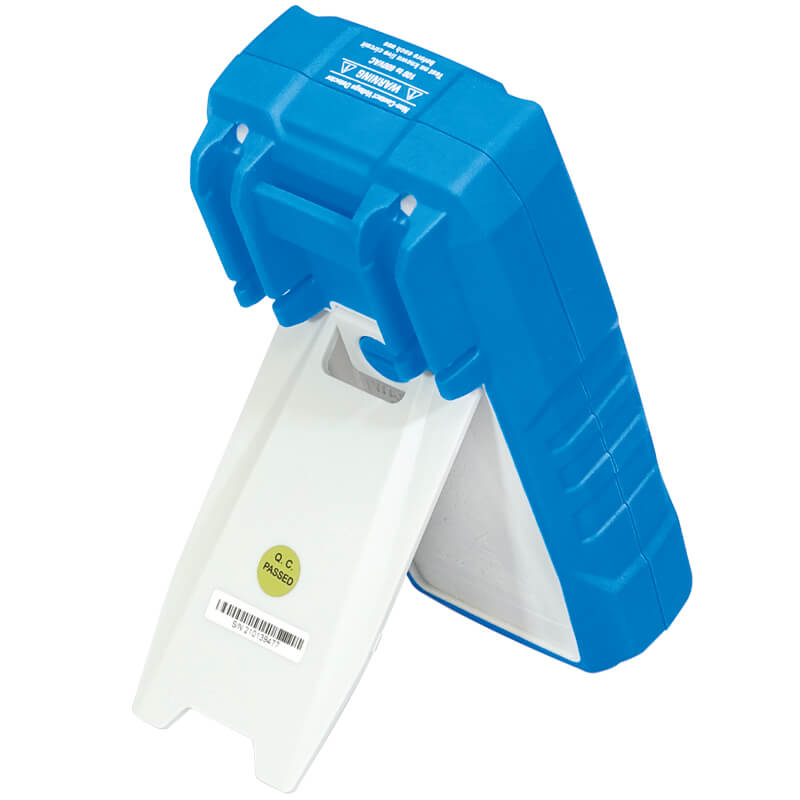

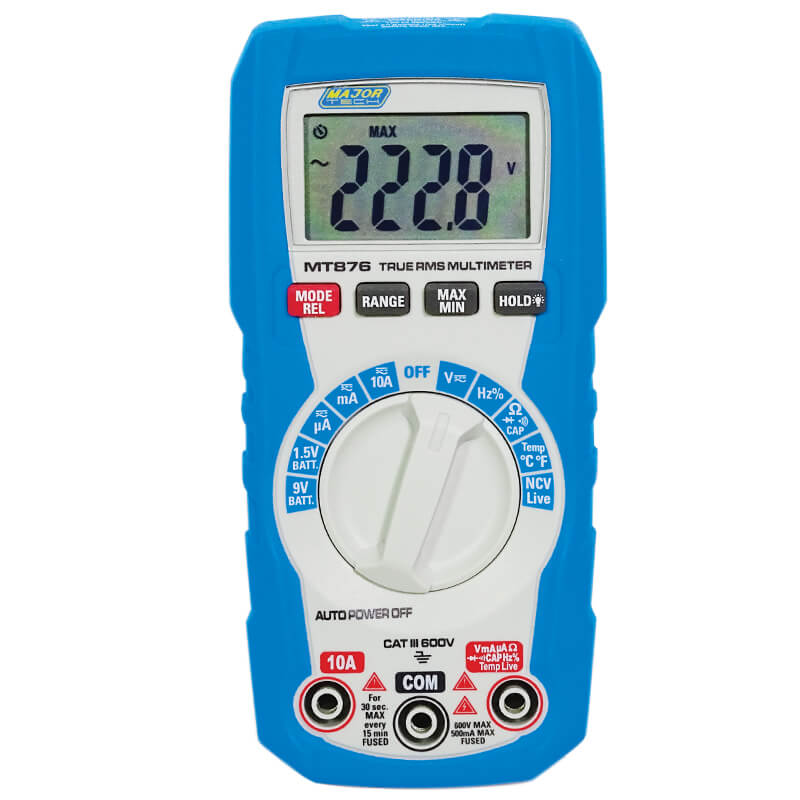

The MT876 is a 600V AC/DC True RMS Multimeter supplied in a double moulded rubber housing, designed to withstand the rugged environment of a work site and has been drop tested up to 2 meters. This is an auto ranging multimeter with the option of manual override and has a 4000 count display with a back light. The “Live” function allows the user to physically connect one lead to the Live or Neutral wires to determine the Live contact and when detected, LIVE is displayed on screen and the NCV indicator light flashes and the buzzer sounds. This meter conforms to the International Standard IEC 61010-1 CAT III 600V, and is ideally suited for everyday use by electricians, electronic technicians, the air conditioning industry and DIY users.
| DC Current | 10A |
|---|---|
| DC Current resolution | 0.01A |
| DC Current accuracy | ±(1.0% +5) |
| AC Current | 10A |
| AC current resolution | 0.01A |
| AC Current accuracy | ±(1%+5) |
| DC Voltage | 600V |
| DC Voltage resolution | 1V |
| DC Voltage accuracy | ±(0.5% + 8 Digits) |
| AC Voltage | 600V |
| AC Voltage resolution | 1V |
| AC voltage accuracy | ±(1.2% +5) |
| Resistance | 40MΩ |
| Resistance resolution | 0.01MΩ |
| Resistance accuracy | ±(1.2%+5) |
| Capacitance | 99.9mF |
| Capacitance resolution | 0.01mF |
| Capacitance accuracy | ±(3.5% + 5 Digits) |
| Frequency | 9.999Hz to 9.999MHz |
| Frequency resolution | 0.001MHz |
| Frequency accuracy | ±(1.2% +5) |
| Temperature | -18°C – 1000°C |
| Temperature resolution | 1°C |
| Temperature accuracy | ±(1.5% +5) |
| Duty Cycle | 0.5% – 99.9% |
| Duty Cycle resolution | 0.1% |
| Duty Cycle accuracy | ±(1.2% + 5 Digits) |
| Continuity | Buzzer sounds at approx. 50Ω |
| Diode Test | Test current 1mA, open circuit voltage 3V |
| Min Max | Yes |
| Data Hold | Yes |
| Batteries | 2 x AAA |
| Dimensions | 154 x 74 x 43mm |
| Weight | 255g |
